MDM300 Sampling Options
To get the best possible performance from your MDM300 or MDM300 I.S., it is crucial to have appropriate sample conditioning for your measurement point. Options are available to cover all common sampling requirements – from verification of dry compressed air supplies, to the measurement of natural gas downstream of a glycol contactor.

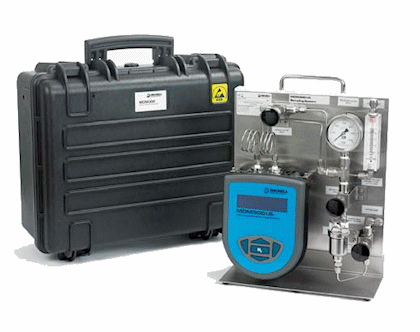

MDM300 & MDM300 Sampling System

Technical Specification
Operating Conditions
Maximum Inlet / Sample Pressure 300 barg (max)
Operating Environment -20 to +50°C
Storage/ Transport Temperature -20 to +50°C
Mechanical Specifications
Mounting Arrangement Panel mounted on AISI 316
IP/NEMA Rating None
Gas Connections Choice of Swagelok tube connectors
Flow Measurement Dwyer Flowmeter
Flow Control Swagelok metering valves
Filters Choice of: particulate, coalescing or Glysorb filters
Gas Wetted Materials AISI 316 and Viton, other materials on request
Dimensions 400 x 300 x 150mm
Weight 5kg
