  Software Downloads Michell has developed an un-paralleled range of technologies and depth of knowledge through meeting the challenges of humidity and oxygen measurement. Our engineers have also developed one breakthrough after another, fundamentally changing markets. Supporting software for these products can be found here.




New software releases

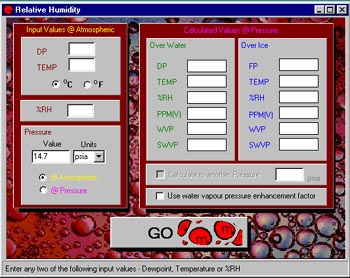

Humidity Calculator The humidity calculator offers a comprehensive selection of humidity units. High and low humidity ranges are covered. It facilitates calculations with extremely dry gases containing only parts per billion (ppb) moisture content - which is, of most relevance to sectors such as semiconductor industry. At the other end of the scale, it is capable of calculations involving very high concentrations of water vapour - such as in paper production and certain metallurgical processes. Parameters included on the online calculator:
  • Relative humidity
  • Absolute humidity, g/m3
  • Mixing ratio, g/Kg
  • Moisture content, ppmV, in gases
  • Moisture content, ppmW, in liquids
  • Dew point, °C, and vapour pressure

Humidity Calculator - NOW Available for iPhone and Android mobile devices

Humidity Calculator Michell Instruments has launched a mobile app version of its humidity calculator to enable fast calculations of trace moisture, moisture in liquids and relative humidity to be made easily and conveniently. Based on Michell's popular moisture and humidity slide rule, the calculator is a valuable tool for anyone working with processes involving moisture control or analysis.

Visit iTunes or Android Market to download for free. Available in Android Market  Humidity Calculator - Michell Instruments

Click for product information With the XZR Application software you can view, graph and log live readings as well as view all instrument configuration parameters.

Click for product information The MDM300 Application software allows the user to connect to the MDM300 via a Bluetooth wireless link. Once connected all the set-up functions of the MDM300 can easily be accessed. In addition the software allows quick and simple downloading of any logged data.


Current list

Please note: when downloading a newer version of our software please ensure you remove the old version first.

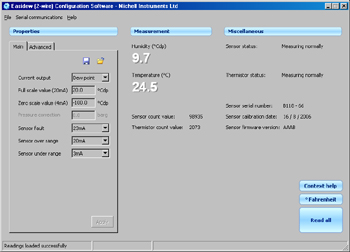

Easidew 2-Wire Configuration Software

* This software allows the user to configure the output range and units of the Easidew Transmitter. To enable connection between PC and Easidew Transmitter the Easidew Communications Kit (Part No. EA2-CK) is required. Please contact Michell Instruments to purchase the Communication Kit.

Download Easidew 2-Wire software (requires Win 1998, 2000 or XP, for older systems see Windows update). Ram: Minimum of 64 MB. Hard disk: Minimum 10 MB. Hardware: 1 x RS232 port (If an RS232 port is not available, then USB to RS232 converters can be used on USB ports).

Easidew (3-Wire) Transmitter Application Software

Download Easidew software (requires Win 2000 or XP, for older systems see Windows update). To fully utilise this software, ensure that a K2 ADE Interface Converter, RS232-RS422/485, non-isolated is used (Michell Part No. 35034).

Opti-Soft Data Acquisition Software

Download Optidew software (requires Win 2000 or XP, for older systems see Windows update).

PURA Transmitter Application Software

Download PURA software (requires Win 2000 or XP, for older systems see Windows update)

Windows update

The Easidew, Opti-Soft and applications all use the latest Microsoft® Installation technology (Windows Installer) as the install engine. Unlike Windows 2000 and XP, Windows 95, 98 and ME do not support this technology as standard therefore if you are running one of these operating systems it is likely you will need to upgrade your system with the Windows Installer service pack.

To upgrade your system, you can click on the link below this paragraph. This will initialise installation of the Windows Installer service pack. Follow the on screen instructions and re-boot your system on completion. Your operating system will then be equipped with the Microsoft® Installer V2.0 and you will be able to install the Easidew, Optidew and Humidity Calculator applications.

Install Windows Installer Service Pack

Dewmet Logging Software

This data acquisition software allows dewpoint, temperature and relative humidity data from our Dewmet TDH Cooled Mirror Dewpointmeter to be logged directly on to a PC in a WindowsT environment via an RS232 inter-connecting cable. Logged data can either be charted on-line or stored numerically for processing in a spreadsheet.


Download the Dewmet Logging Software

This program will be downloaded as a self extracting zip file and will be saved to a temporary location on your hard drive. From there, double click the zip file to open and follow the set-up procedure. Please note: this software will not work on Windows 2000 or XP.

Transmet Logging Software

The Transmet Dewpoint Transmitter, in digital mode, can be linked directly into a PC, to provide on-screen display, charting or numerical acquisition of dewpoint and temperature data. The software allows data to be collected and displayed from up to 32 Transmets simultaneously, using RS485 communications protocol.


Download the Transmet Logging Software

This program will be downloaded as a self extracting zip file and will be saved to a temporary location on your hard drive. From there, double click the zip file to open and follow the set-up procedure. Please note: this software will not work on Windows 2000 or XP.

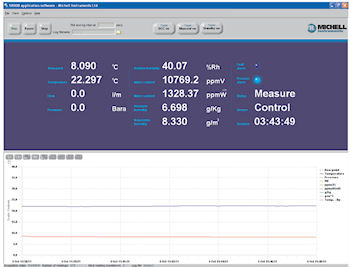

S8000 Application Software

The application software is capable of emulating the instrument's control, set-up and logging functions. It has an expanded parameter display and simultaneously displays all of the measured and calculated parameters. A customisable graph is also provided for displaying any combination of the measured or calculated parameters against a time base. The main toolbar groups together the principal operational commands, allowing the user to control DCC, MAXCOOL and STANDBY functions. Data logging is also activated from the main toolbar, allowing logs files to be created and saved directly on the host PC.


Enter your email address to download the S8000 software.

 Michell Instruments cannot accept any responsibility for any loss, disruption or damage to your data or your computer system, which may occur if you use any of the programs or data on this page.
